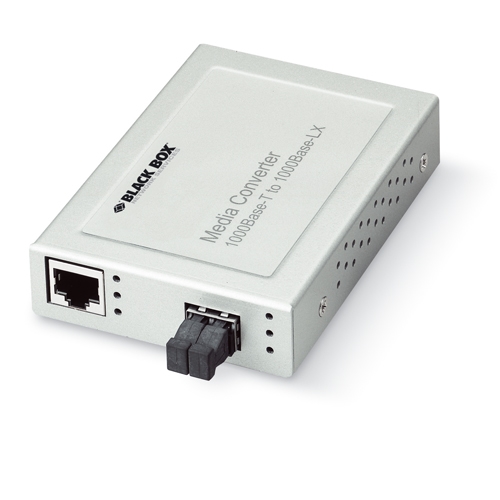

XS 1000 Converter
Billedet kan afvige fra det aktuelle produkt

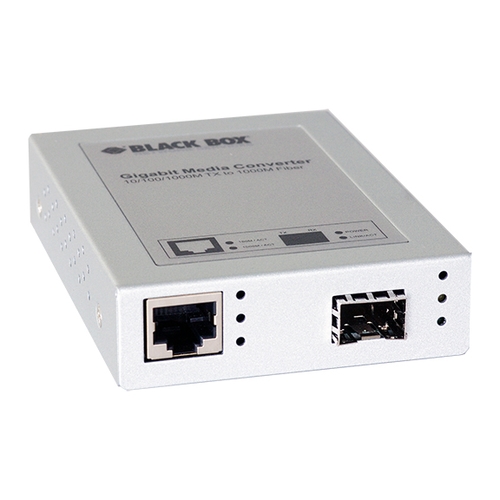

LGE217AE: Mode dep. on SFP, (1) 10/100/1000 Mbps RJ45, (1) SFP (1000M), Connector dep. on SFP, range dep. on SFP, AC


XS 1000 Converter


Gigabit Media Conversion at an affordable cost!


  • Bridge a 1000BASE-TX signal to a 1000BASE-SX/LX signal.
  • Compliant with IEEE 802.3u 1000BASE-T and IEEE 802.3z 1000BASE-SX/LX Gigabit Ethernet Standards.
  • TP port can support Full-Duplex, Auto-MDI/MDI-X and Auto-negotiation.
  • Fibre port available with Multimode SC, Single-mode SC or flexible SFP-slot.
  • SFP slot can support either Single-Mode or Multimode SFP Modules.
  • Diagnostic LED indications.
  • Optionally, DIN-Rail or Wall mountable.
  • Expandable into 19" XS Media Conversion System.
  • Garanti: 1 Year Double Diamond™ Warranty (Standard)

  Produkt       Kode   Stykpris   Antal
Multimode
(1) 1000 Mbps RJ45
(1) 1000BaseSX MM SC
SC
220m/550m

AC
  XS 1000 Converter
XS 1000 Converter
  LMCS212AE-SC-R2
Singlemode
(1) 1000 Mbps RJ45
(1) 1000BaseLX SM SC
SC
10km

AC
  XS 1000 Converter
XS 1000 Converter
  LMCS212AE-SC10-R2
Mode dep. on SFP
(1) 10/100/1000 Mbps RJ45
(1) SFP (1000M)
Connector dep. on SFP
range dep. on SFP

AC
  XS 1000 Converter
XS 1000 Converter
  LGE217AE

Tilbehør

  Produkt     Kode   Stykpris   Antal

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Single-mode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
Power Supply
  XS Media Converter System Spare Power Supply
XS Media Converter System Spare Power Supply
  LME1601E
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
Rack/Mount Kit
  Kit for wall mounting LMCS2xx and LGE217
Kit for wall mounting LMCS2xx and LGE217
  LGE200-WALL
  XS Media Converter System - 19" chassis, 16 slots, 95–260 VAC
XS Media Converter System
  LME1600E

A converter that can take an Ethernet network from copper to fibre is one of the most frequently needed devices. The process seems easy enough; just plug in the RJ-45 for the copper connection, then plug in the fibre connectors and your connector is ready to go!
With the XS Media Converters it really is as easy as that, since the conversion mode and method are set up automatically.

The Gigabit Ethernet media converters series are designed to bridge a 1000BASE-TX signal to a 1000BASE-LX/SX signal. LGE217 support also 10/100/1000M copper links.

Use these devices to extend the connection distance between two Gigabit Ethernet Twisted-pair devices via fiber cable transparently with no performance degradation.

Select from converters for Multimode or single mode operation. You may even choose a model with a flexible SFP slot that can take multimode or single mode long range SFP modules.

The XS Media Converters feature an aesthetically pleasing design and informative LEDs that show you the status of your link. You can use the XS Media Converters "right out of the box" as a standalone device, or you can order a wall or DIN rail mounting kit (sold separately) or even a 16-slot rack chassis. For additional reliability and stability, add a redundant power supply for the 16-slot rack chassis.
